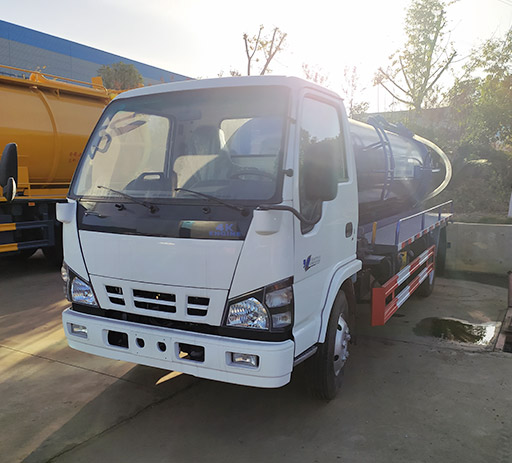

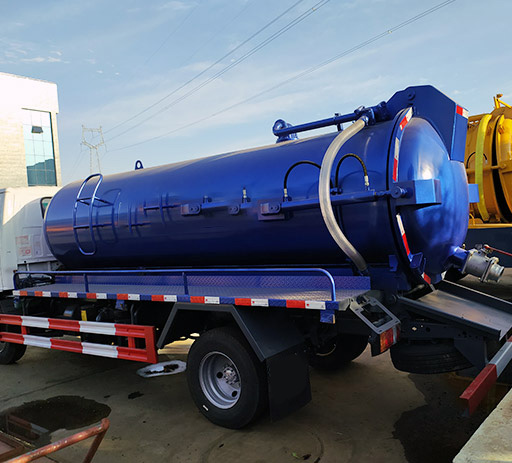

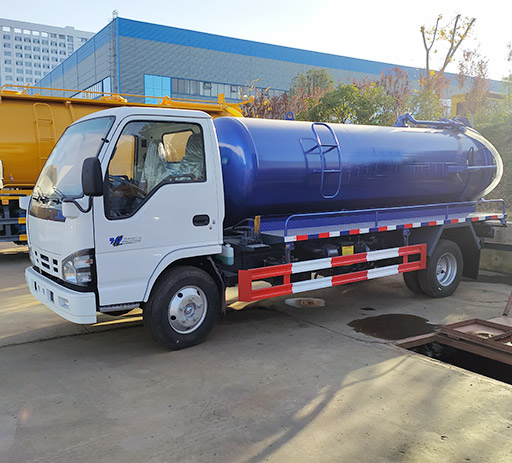

isuzu chassis, euro4/euro5/euro6 emission ,5cbm tank volume ,left hand or right hand steering , with strong vacuum pump,designed for city sewage suction and transportation,narrow cabin for 20 feet shipping container
Wheel base3360 mm
| Truck name | isuzu 5 m³sewage suction truck |
| Chassis parameters | |
| Chassis brand | Isuzu |
| Emission standard | Euro 4/5/6 |
| Driving type | 4*2 left hand or right hand steering |
| Tire specification | 7.00R16 6 wheels+1 spare tire |
| fuel type | diesel engine |
| Horsepower | 120hp |
| Front axle capacity | 2.5ton |
| Rear axle capacity | 4.8ton |
| Transmission gearbox | 5 gears |
| Air condition | Heat and cold air conditioning |
| Super structure parameters | |
| Container volume | 5 m³ |
| Container material | High strength carbon steel |
| Operation assy | Two sides simultaneous operation |
| Remote control | optional |
| Pump assy | 5ton oil pump/6ton water pump |
| Tank thickness | 4mm |
