howo chassis, yuchai 130hp, diesel engine, 6cbm concrete tank capacity, high strength alloy steel tank material, 6mm thickness,international brand hydraulic components , used for cement mixing and transportation in construction site

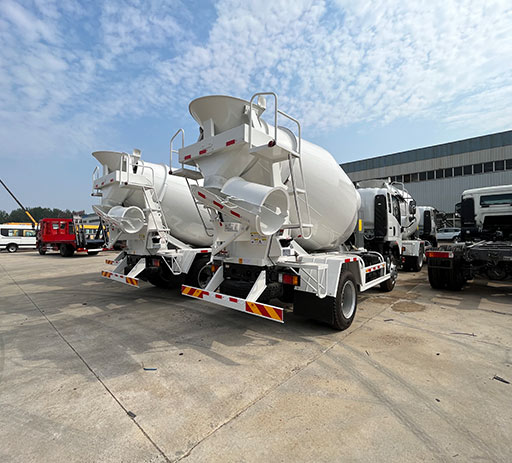

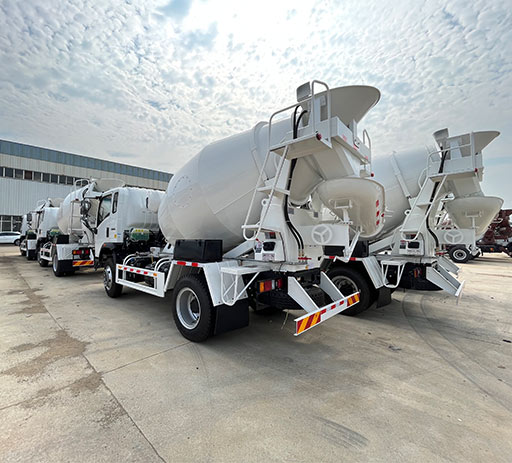

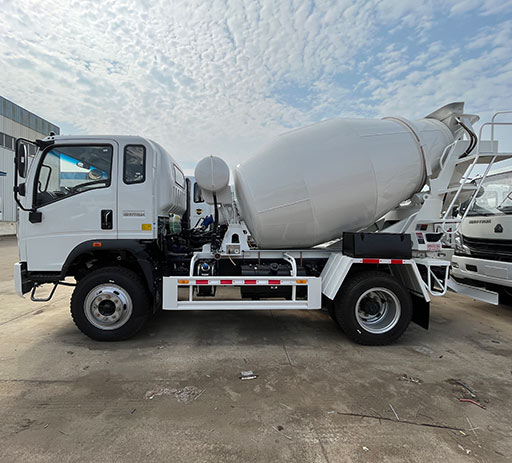

HOWO 6 m³ concrete tank truck
Container volume6m³Mixer tilt angle
| Truck name | Howo 6m³ concrete mixer tank truck |
| Chassis parameters | |
| Chassis brand | howo |
| Emission standard | Euro 2/5/6 |
| Driving type | 4*2 |
| Steering type | Left /right hand |
| Tire specification | 9.00R20 |
| Tire number | 10 wheels+1 spare tire |
| Wheel base | 3800 mm |
| Engine | YC4D130-33 |
| Horsepower | 130hp |
| gearbox | WLY653H |
| Rear axle capacity | 9ton |
| Suspension | Leaf spring |
| Air condition | Heat and cold air conditioning |
| Container material | High strength alloy steel |
| material thickness | 6mm |
| Hydraulic assy | international famous brand |
| Remote control | optional |
| discharging speed | 3m3/min |
| rotational speed | 3r/min |
| Mixer tilt angle | 15.3° |
| temperature range | 18℃ |
