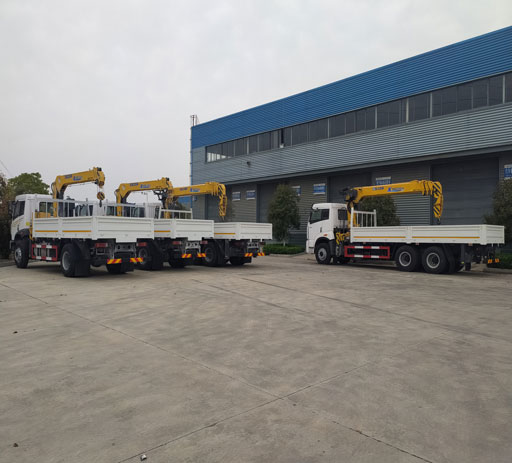

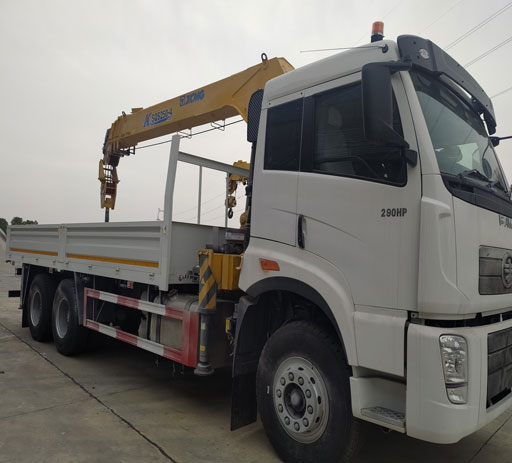

FAW chassis,hydraulic xcmg straight boom,10ton lifting capacity,diesel engine, 8.5m cargo box,which is widely used in multiple working conditions like port lifting,construction site ,road rescue,etc.
FAW chassis,2025 orginal new
diesel engine,weichai power

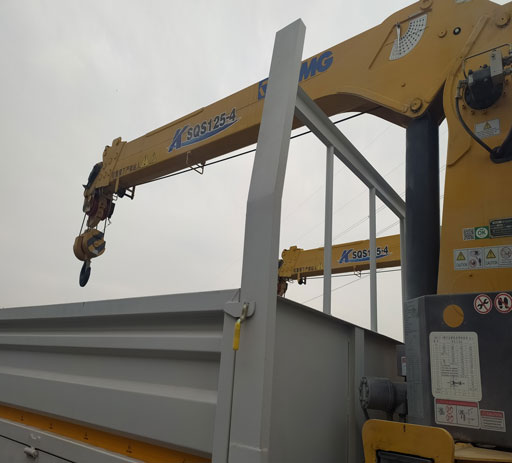

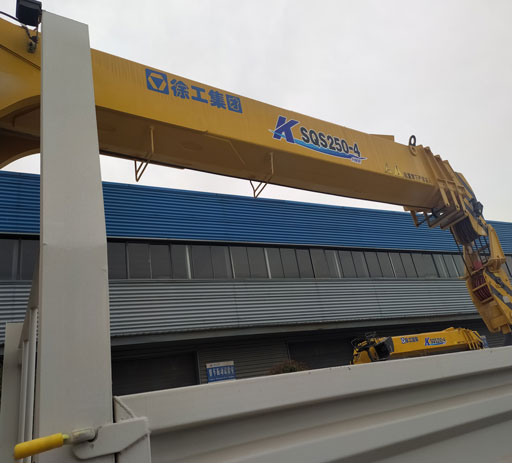

hydraulic xcmg straight boom,China top brand crane manufacture
10ton lifting capacity,16m max lifting height,14m max working radius

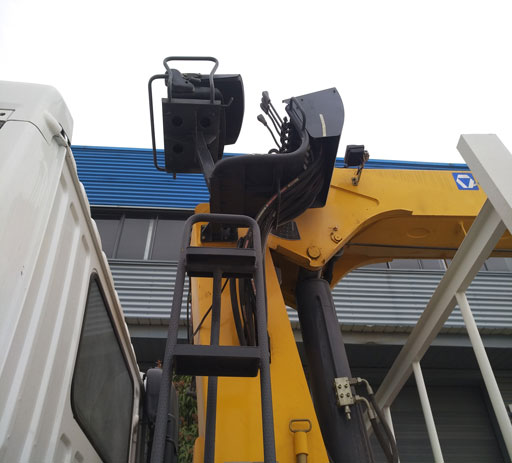

top seat designed for high aerial working condition

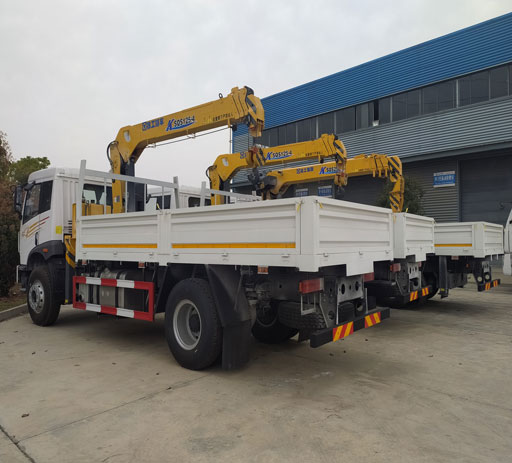

rear hydraulic support leg to guarantee the vehicle balance and safety
8.5m cargo box, carbon steel material, 3mm side,4mm floor thickness
anti-corrosion paiting treatment before long time sea shipping
which is widely used in multiple working conditions like port lifting,construction site ,road rescue,etc.
| Truck name | truck mounted crane |
| Chassis brand | FAW |
| Emission standard | Euro2/5 |
| Steering type | Left/right hand drive |
| Wheel base | 4300+1500mm |
| Engine | weichai |
| Horsepower | 290hp |
| Tire | 11.00R20 |
| Tire number | 10+1 |
| Front axle capacity | 7ton |
| Rear axle capacity | 16ton*2 |
| Transmission | Manual |
| Gear box | manual 10 gears |
| Fuel type | Diesel |
| Air condition | Cold and heat air conditioning |
| Super structure parameters | |
| Crane lifting type | Hydraulic |
| Crane capacity | 10ton |
| Boom model | 5-section |
| Lifting height | 21m |
| Working radius | 18.75m |
| container size | 8500*2000*400mm(customized ) |
| container material | High strength carbon steel |
| Container thickness | 3mm Side,4mm bottom |
