howo chassis, weichai 340hp, diesel engine, 12+9 cbm bitumen and chipping tank capacity, heat preservation layer, international famous brand burner, bitumen pump and other hydraulic units, used for asphalt/bitumen distribute in road construction site

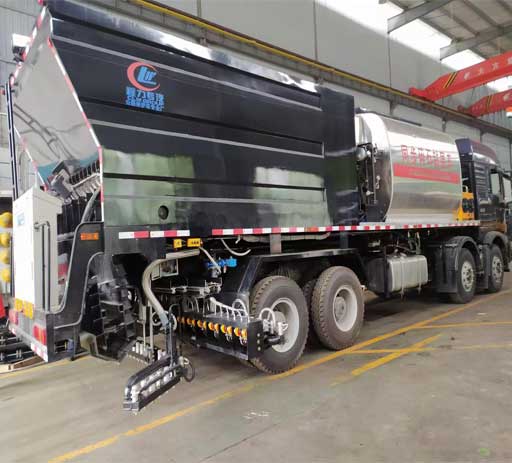

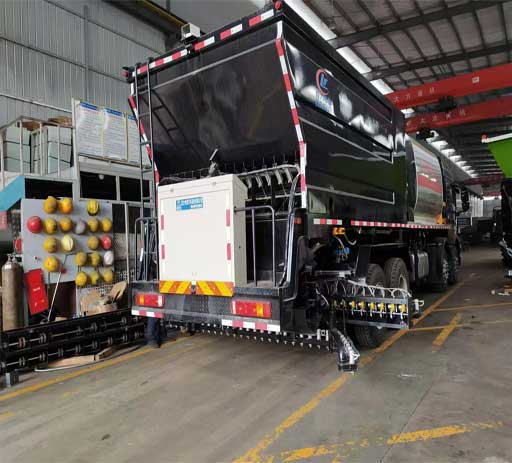

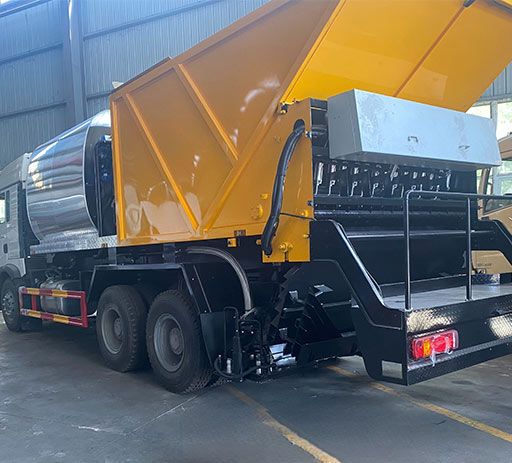

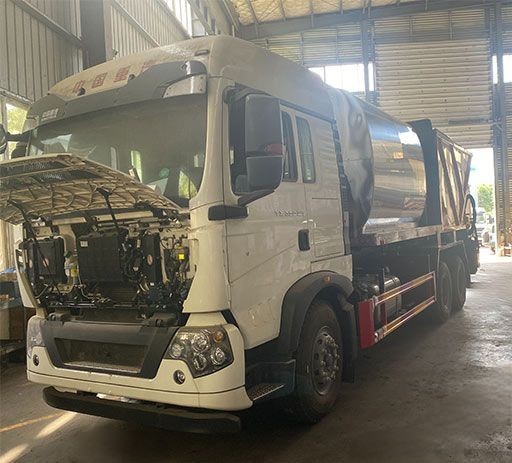

shacman 12+9 m³ bitumen and chipping truck
| Truck name | HOWO 12+8 chipping and bitumen truck |
| Chassis parameters | |
| Chassis brand | HOWO |
| Emission standard | Euro 2/5/6 |
| Driving type | 6*4 |
| Steering type | Left /right hand |
| Tire specification | 12.00R20 |
| Tire number | 10 wheels+1 spare tire |
| Wheel base | 3825+1350mm |
| Engine | weichai |
| Horsepower | 371hp |
| rear axle capacity | HC16 |
| Transmission gearbox | HW19710 |
| Oil tank volume | 350L |
| Suspension | Leaf spring |
| Air condition | Heat and cold air conditioning |
| Super structure parameters | |
| Container volume | 12m³ chipping tank+9m³ bitumen tank |
| Container material | High strength carbon steel |
| Hydraulic assy | Domestic famous brand |
| Operation assy | Two sides simultaneous operation |
| Remote control | optional |
| spreading width | ≤4200mm |
| Asphalt spreading amount | 0.3-4.0L/m³ |
| heating system | burner |
| maxmum pressure | 20MPa |
