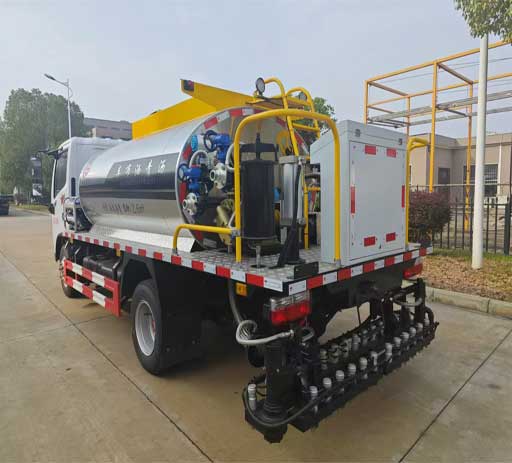

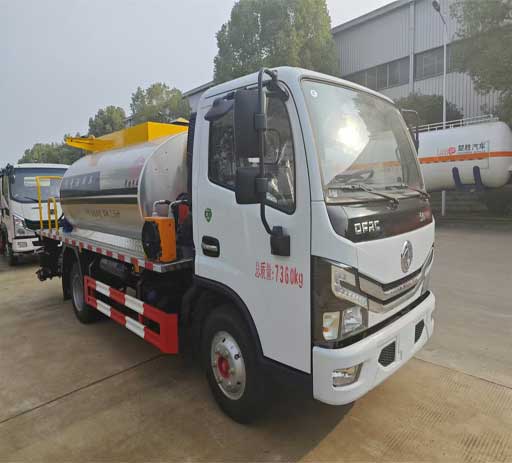

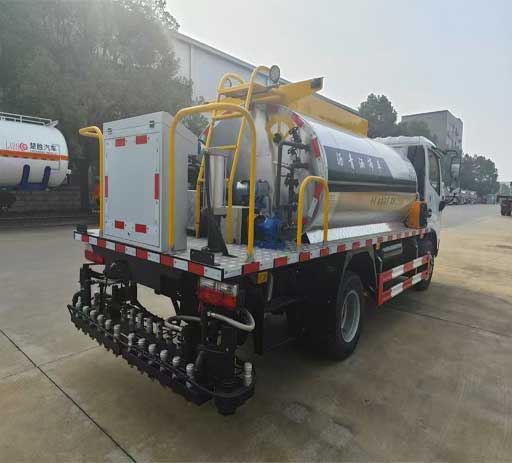

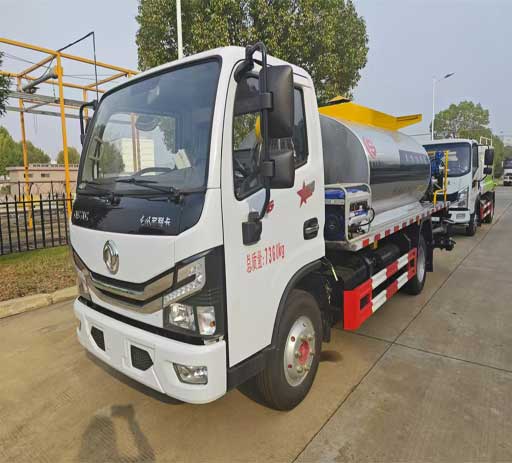

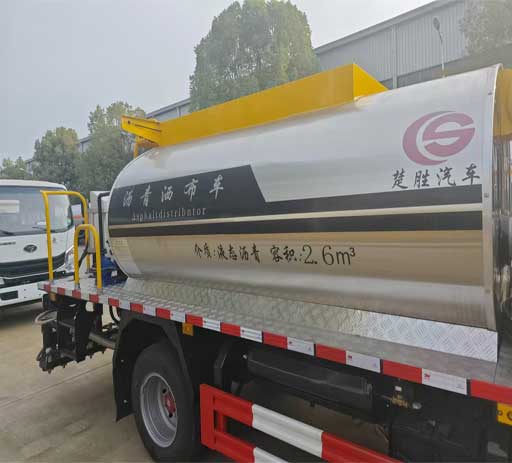

dongfeng 5cbm bitumen distributor truck

dongfeng chassis, euro2/5 emission standard,cummins diesel engine, 5cbm bitumen tank capacity,stainless steel tank material, heat preservation layer, international famous brand burner, bitumen pump and other hydraulic units, used for asphalt/bitumen distribute in road construction site

Description

Applications of Asphalt Distributor Trucks:

Asphalt distributor trucks are a type of black pavement construction machinery, essential equipment in the construction of highways, urban roads, airports, and ports. When constructing or maintaining asphalt or residual oil pavements using the asphalt penetration method or asphalt layer surface treatment method, asphalt distributor trucks can transport and distribute liquid asphalt (including hot asphalt, emulsified asphalt, and residual oil). Additionally, they can supply asphalt binder to loosened soil on-site for constructing asphalt-stabilized soil pavements or pavement base courses. When constructing the prime coat, waterproof layer, and bonding layer of high-grade highway asphalt pavements, they can distribute high-viscosity modified asphalt, heavy-traffic asphalt, modified emulsified asphalt, and emulsified asphalt. They can also be used for asphalt overlay and spraying in highway maintenance, and for the construction of county and township-level asphalt roads using layered paving techniques.

Technical Data

Truck name dongfeng 5cbm bitument distributor truck
Chassis parameters
Chassis brand dongfeng
Emission standard Euro 2/5
Driving type 4*2
Steering type Left /right hand
Tire specification 8.25R20
Tire number 6 wheels+1 spare tire
Wheel base 3800mm
Engine cummins
Transmission gearbox manual gear
Suspension Leaf spring
Air condition Heat and cold air conditioning
Super structure parameters
Container volume 5m³ bitumen tank
Container material stainless steel

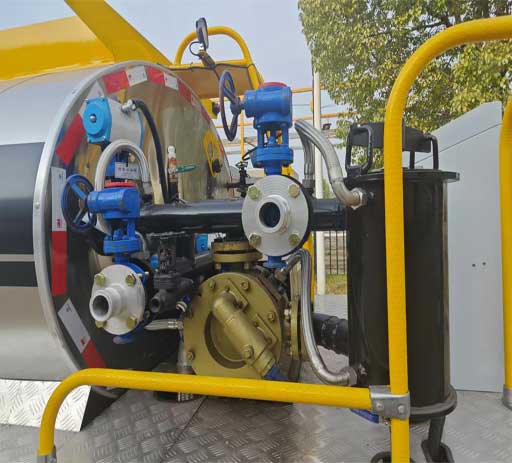

Hydraulic assy Domestic famous brand
Operation assy Two sides simultaneous operation

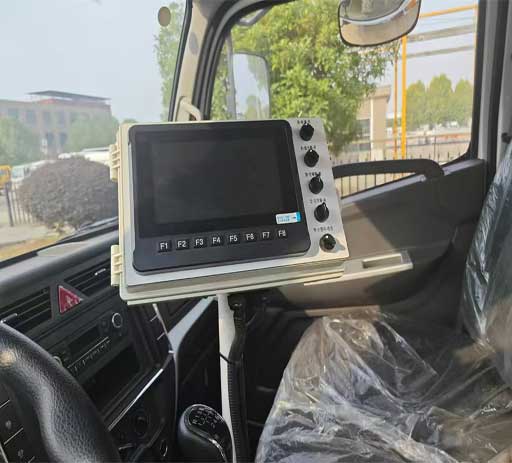

Remote control optional
spreading width ≤4200mm
Asphalt spreading amount 0.3-4.0L/m³
heating system burner
maxmum pressure 20MPa
