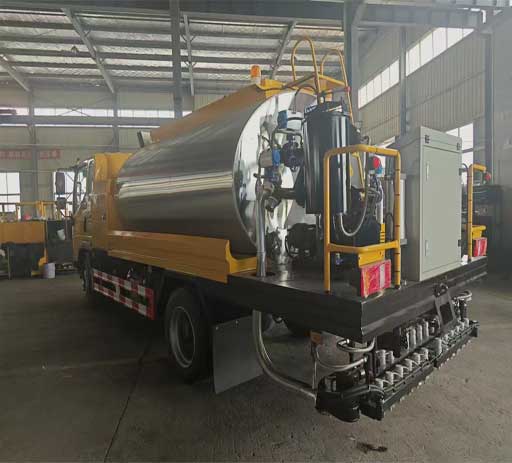

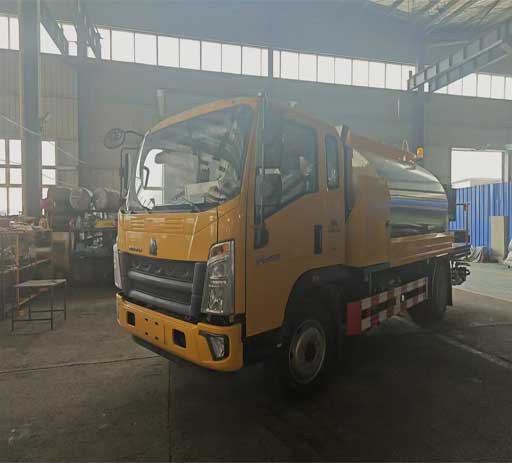

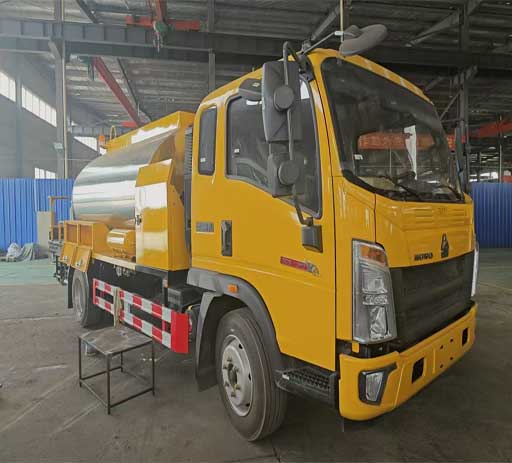

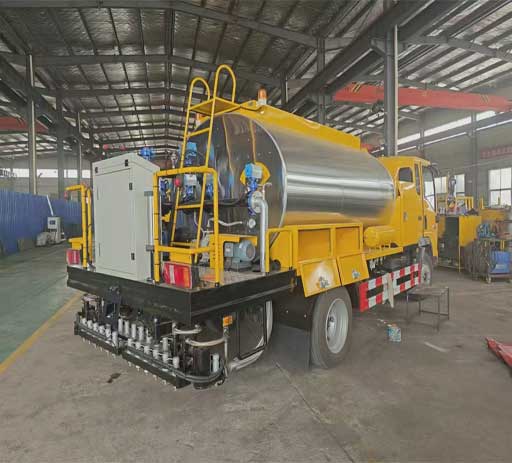

HOWO chassis, euro2/5 emission standard,weichai diesel engine, 8cbm bitumen tank capacity,stainless steel material, heat preservation layer, international famous brand burner, bitumen pump and other hydraulic units, used for asphalt/bitumen distribute in road construction site
Thermal Oil Heating System
►A specially designed U-shaped combustion chamber (for rapid heating of thermal oil) is housed within the asphalt tank, secured by flanges and bolts for easy disassembly.
►Thermal oil temperature is set to 250°C (for modified asphalt), with a continuous asphalt heating rate ≥10°C/h. All asphalt pipelines and spray booms are heated by thermal oil.
►Thermal oil expansion tank (thermal oil tank)
►A specially designed high-temperature thermal oil pump with a maximum flow rate of 12 m³/h, driven by a three-phase motor.
►Insulated oil pipes
►Chimney
►Pressure safety valve
►Filter, high-temperature valve
Burner
►Self-contained burner with adjustable thermal oil and asphalt temperatures
►Power supply for upper structure: 5.5KW gasoline generator (powering the burner and thermal oil pump three-phase motor)
►Electrical safety devices: air intake, thermal oil level and temperature control
►Direct fuel supply from chassis tank
| Truck name | HOWO 8cbm bitument distributor truck |
| Chassis parameters | |
| Chassis brand | howo |
| Emission standard | Euro 2/5 |
| Driving type | 4*2 |
| Steering type | Left /right hand |
| Tire specification | 8.25R20 |
| Tire number | 6 wheels+1 spare tire |
| Wheel base | 3800mm |
| Engine | weichai |
| Transmission gearbox | manual gear |
| Suspension | Leaf spring |
| Air condition | Heat and cold air conditioning |
| Super structure parameters | |
| Container volume | 8m³ bitumen tank |
| Container material | stainless steel |
| Hydraulic assy | Domestic famous brand |
| Operation assy | Two sides simultaneous operation |
| Remote control | optional |
| spreading width | ≤4200mm |
| Asphalt spreading amount | 0.3-4.0L/m³ |
| heating system | burner |
| maxmum pressure | 20MPa |
