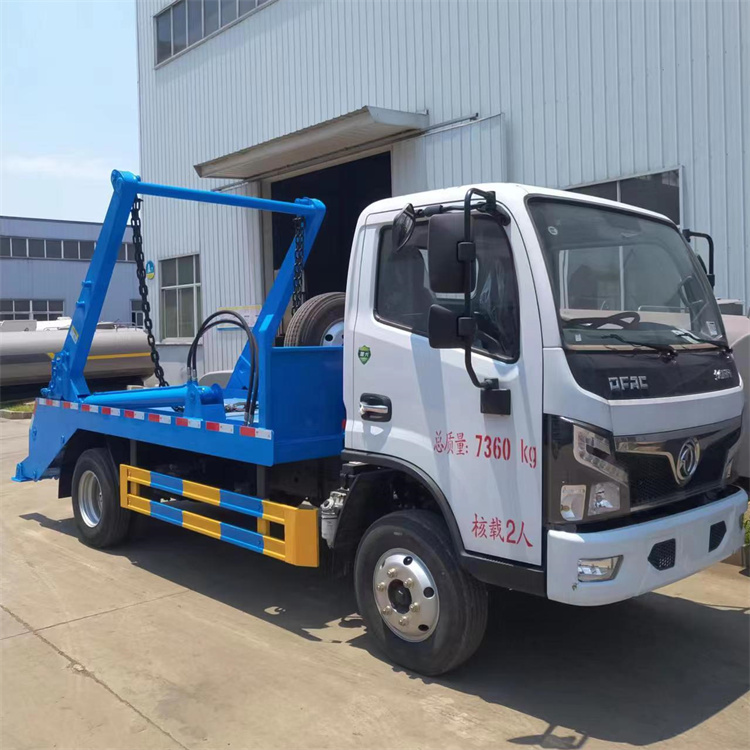

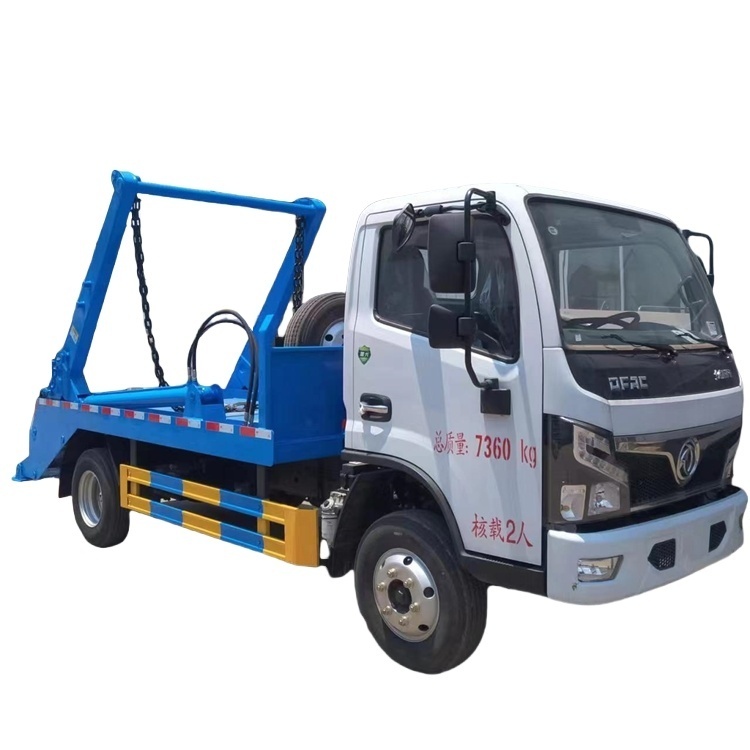

The Dongfeng 5-cubic-meter Swing Arm Garbage Truck is specifically designed for sanitation operations. With practical configurations of both the chassis and superstructure, it can meet various requirements for urban and rural garbage collection and transportation.
Stable Chassis Configuration Ensures Reliable Driving

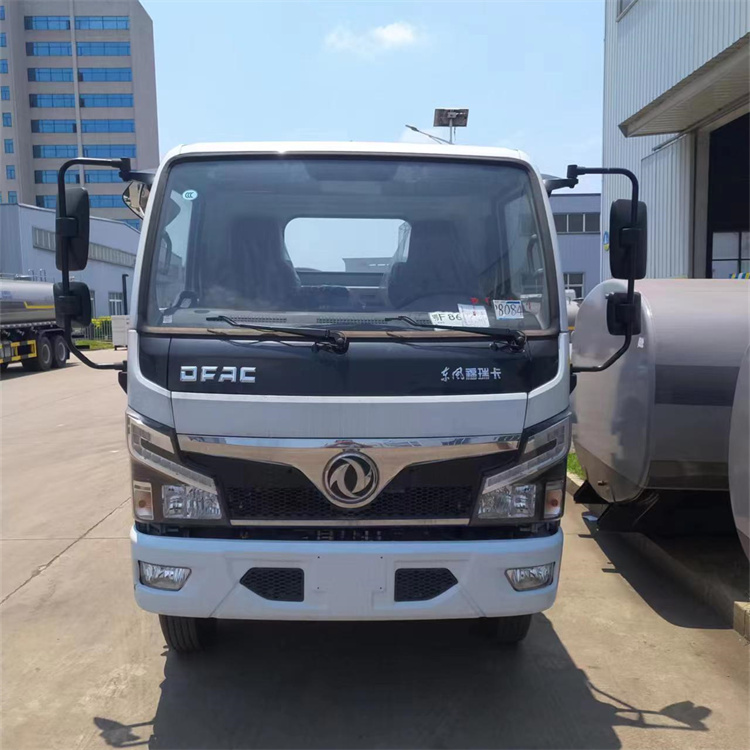

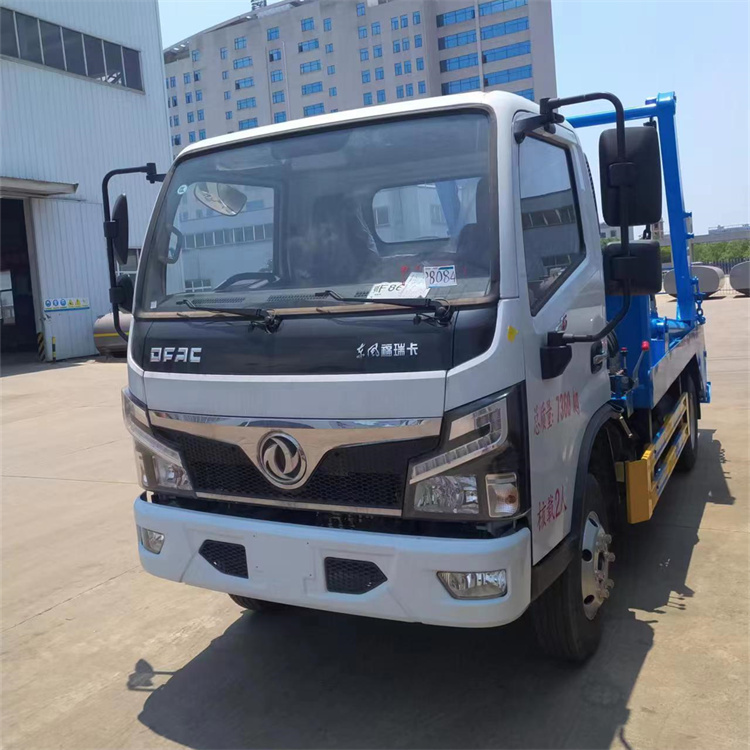

Equipped with an original Dongfeng chassis and Freetruck series cab, the 3308mm wheelbase provides stable vehicle driving. The Quanchai 136-horsepower turbocharged engine offers sufficient power to adapt to various road conditions. The 5-speed gearbox is easy to operate. The 7.00R16 steel wire tires, combined with a 3.5-ton rear axle, have strong load-bearing capacity, enabling easy transportation even when fully loaded with garbage. The air brake system provides effective braking, and the power steering and ABS system make driving safer and more effortless.
Practical Superstructure Design Improves Operational Efficiency

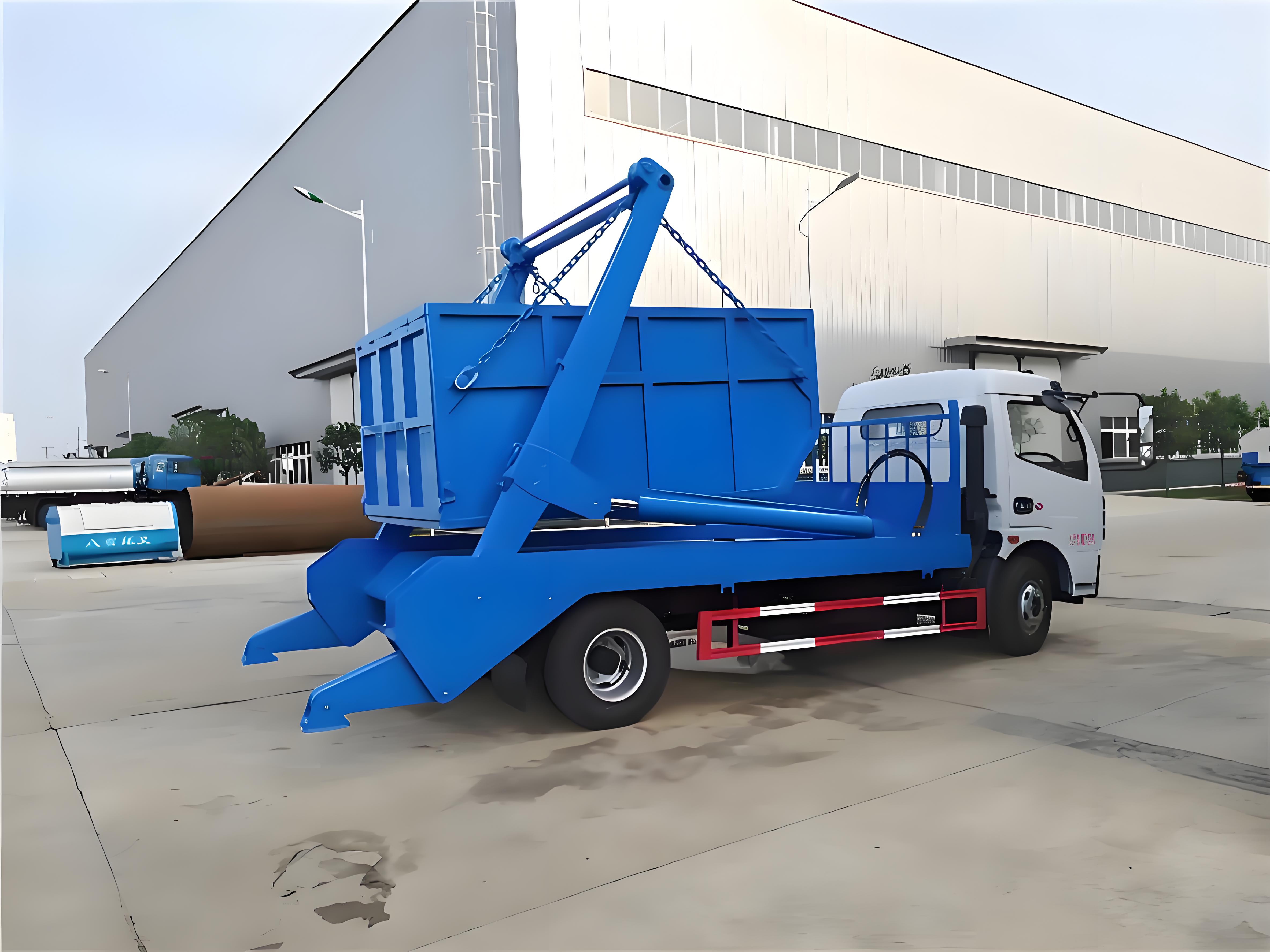

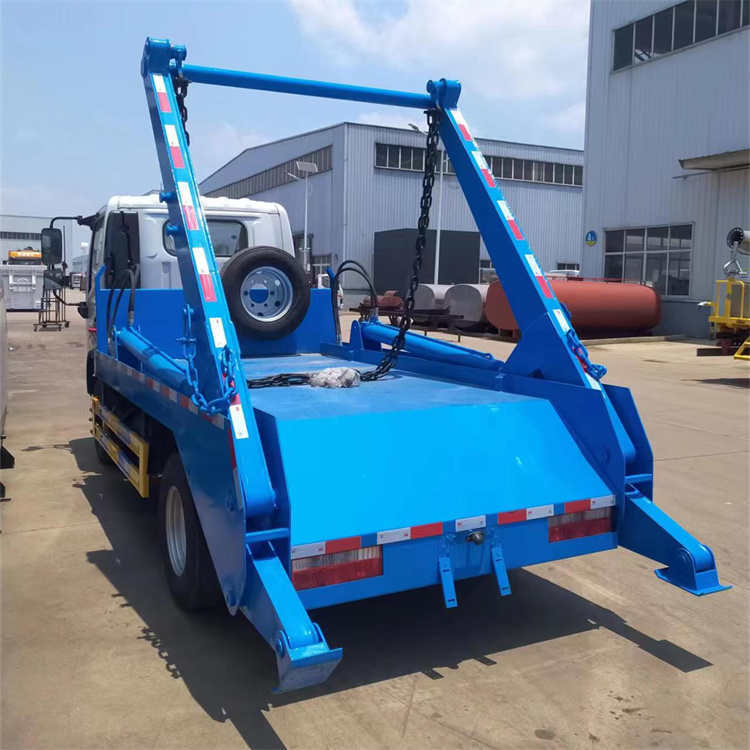

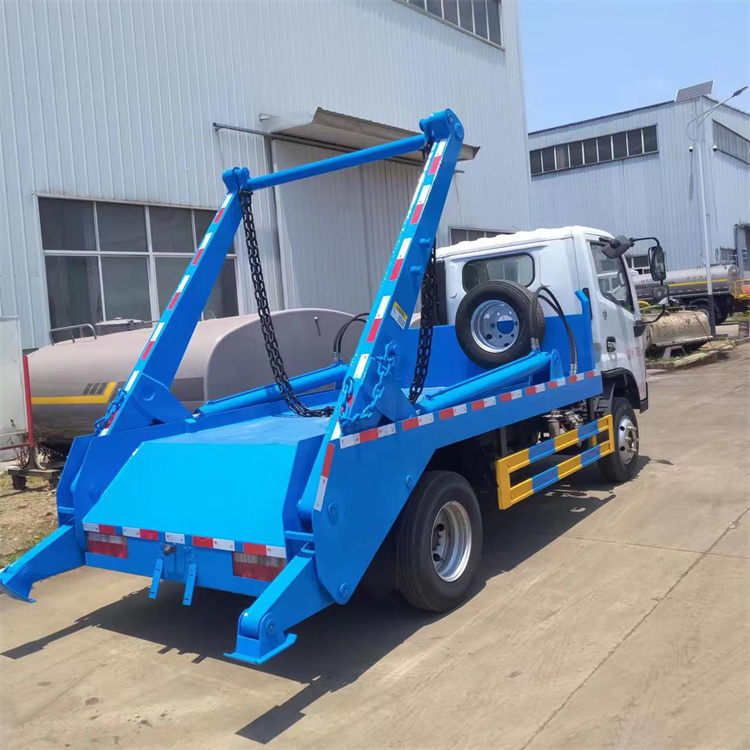

The garbage bins are available in two types: boat-shaped bins and square bins. The side panels are made of 3mm-thick carbon steel plates, and the bottom plates are 4mm-thick carbon steel plates, ensuring sturdiness and durability. The hydraulic lifting assembly supports the operation of one vehicle with multiple bins, improving transportation efficiency. The self-unloading function, combined with a 60-second rapid swing arm, makes garbage loading and unloading quick and convenient. The two hydraulic rear outriggers at the rear of the vehicle stabilize the body during operation. A sealing cover can also be installed to prevent garbage leakage and spillage, making it suitable for different environmental applications.
The Dongfeng 5-cubic-meter Swing Arm Garbage Truck adopts a separate bin-vehicle design. One vehicle can be used in combination with multiple garbage bins for cyclic transportation, which is especially suitable for short-distance transportation. It can efficiently complete garbage collection work on streets, in communities, and in commercial areas.
|
Truck name |
Dongfeng 5CBM swing arm garbage truck |
|
Maximum power |
100KW(136HP) |
|
Displacement (lit) |
2.3 |
|
Tire specification |
7.00R16 |
|
Wheelbase |
3308mm |
|
Container material |
High strong carbon steel |
|
Container thickness |
Side plate 3mm,bottom plate 4mm |
