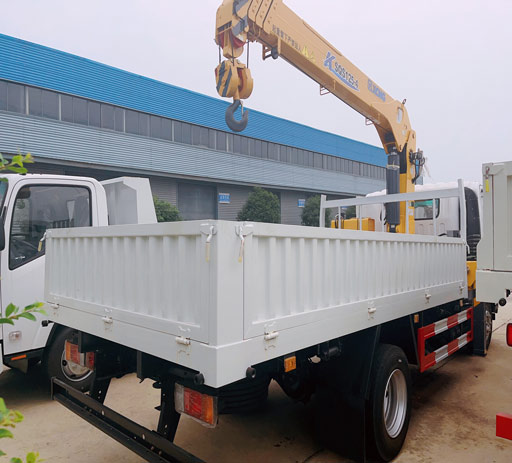

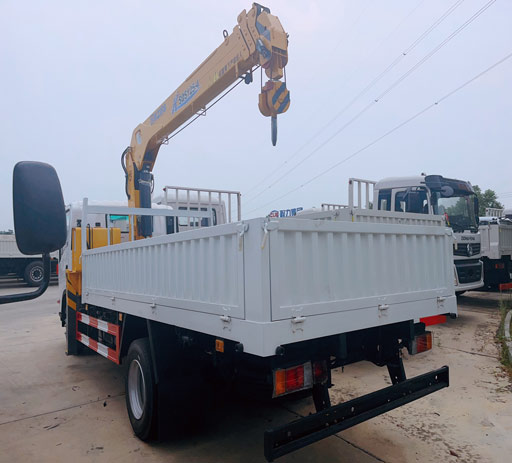

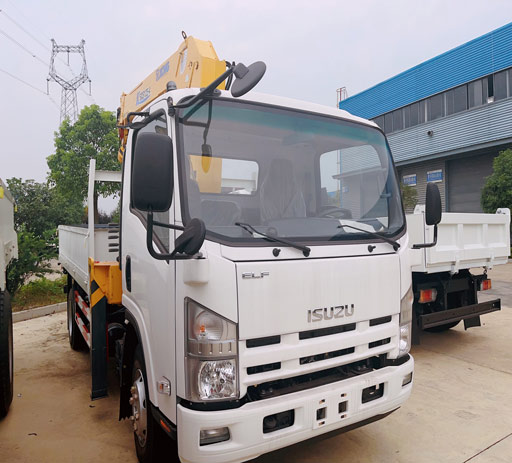

hydraulic straight boom, xcmg 5ton lifing capacity, isuzu chassis, euro4/5 emission standard,customized cargo box made from high strong carbon steel,hydraulic stablizer
Crane Leg Failures and Solutions
1. The left front and left rear vertical support legs of the crane automatically sink during lifting operations. In this case, the leg hydraulic cylinders need to be overhauled and the seals inside the legs replaced.
2. Leakage caused by internal damage to the hydraulic check valves of the crane's vertical legs, or surface damage to the vertical leg cylinders, and damage to the seals.
3. Inspect the left rear vertical cylinder of the crane's legs and replace the internal seal. Remove the hydraulic check valve and inspect the valve seat for damage and dust. Keep the valve seat sealing surface clean. Then, check to see if the automatic sinking of the left front vertical leg has resolved.
| Truck name | truck mounted crane |
| Chassis brand | isuzu |
| Emission standard | Euro4/5 |
| Steering type | Left or right hand drive |
| Wheel base | 3300mm |
| Engine | isuzu |
| Horsepower | 98hp |
| Tire | 7.50R20 6+1 |
| Front axle capacity | 2.4ton |
| Rear axle capacity | 4.8ton |
| Transmission | Manual |
| Gear box | 5 gears manual |
| Fuel type | Diesel |
| Air condition | Cold and heat air conditioning |
| Super structure parameters | |
| Crane lifting type | Hydraulic |
| Crane capacity | 5ton |
| Boom model | 4-section |
| Lifting height | 12.5m |
| Working radius | 11m |
| cargo box size | 3800*2000*400mm(customized ) |
| container material | High strength carbon steel |
| Container thickness | 3mm Side,4mm bottom |
