Cummins engine, durable chassis, 12-cubic-meter tank, versatile sprinkling functions, and a 30+ meter rotatable fog cannon, serves as a reliable urban environmental governance tool for dust suppression and road cleaning.

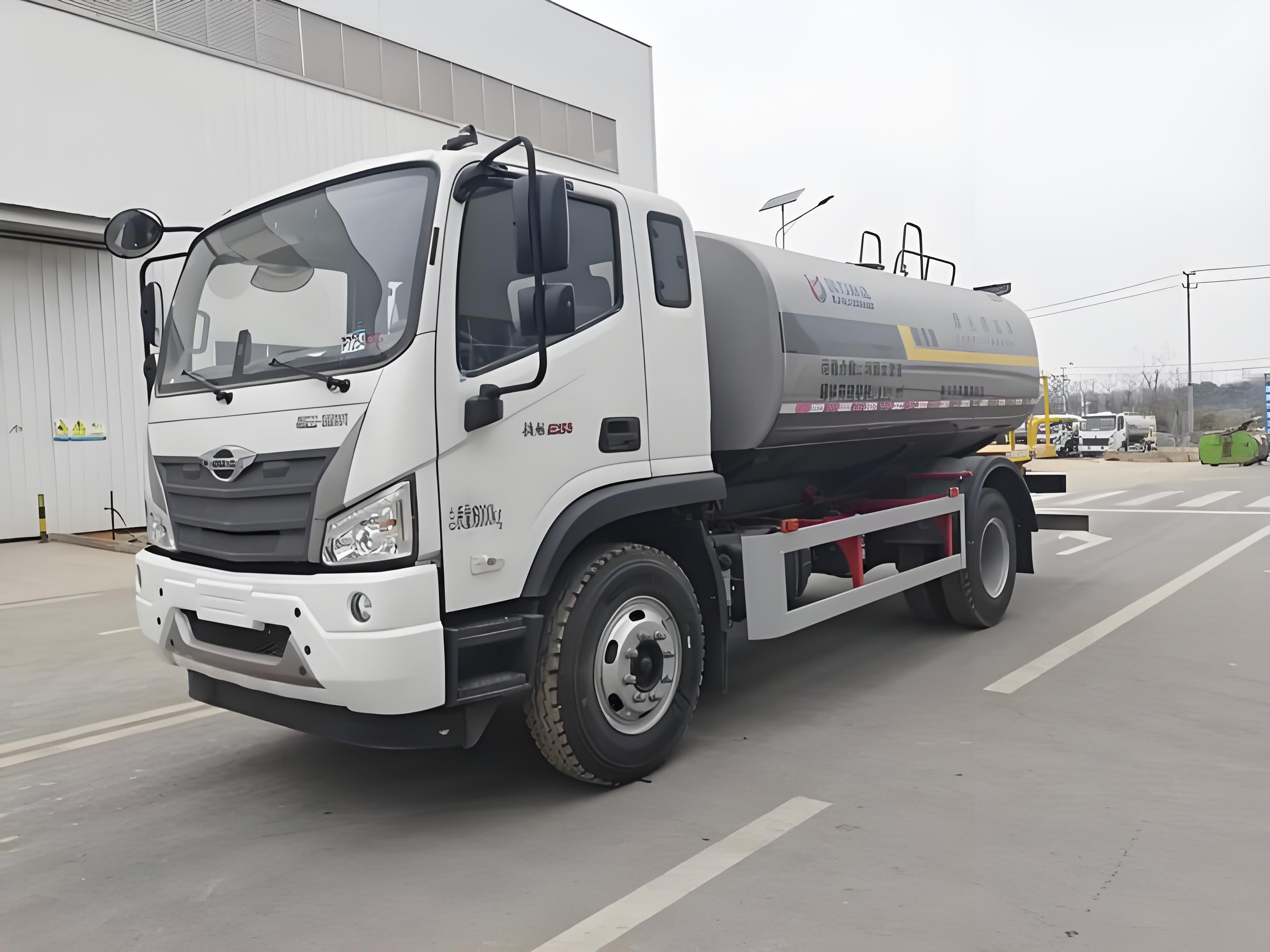

In the field of urban environmental governance, the Foton 12-cubic-meter fog cannon vehicle stands out with its hardcore strength. The models equipped with the Cummins 170-horsepower engine are exemplary for efficient operation.

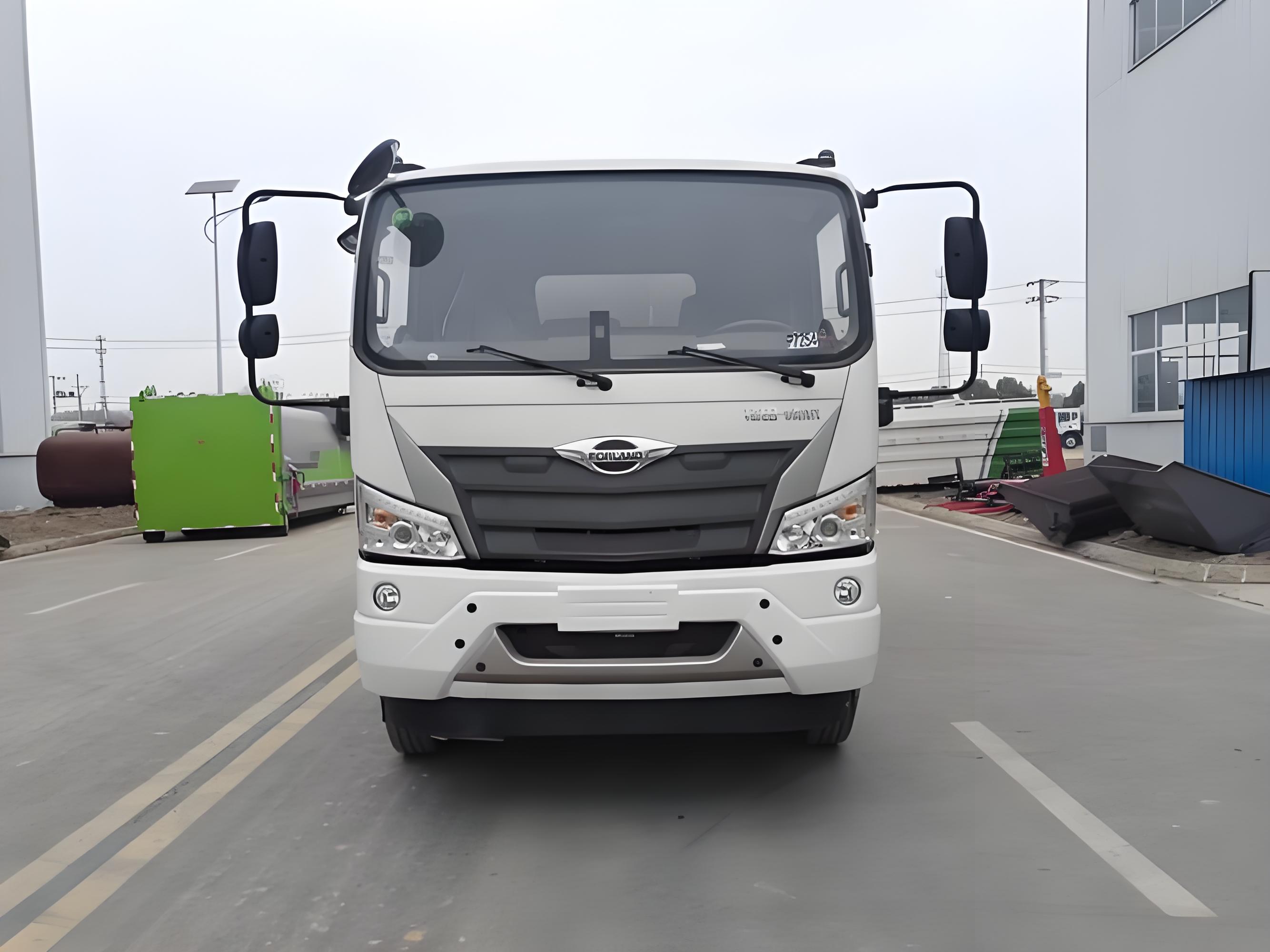

In terms of the chassis, it adopts the mature Foton chassis. The European-style 2200mm wide-body cab supports semi-forward tilting, making maintenance convenient. The 234 thickened frame, combined with 10.00R20 steel wire tires and a 9-ton 1093 rear axle, provides strong load-bearing performance. Even when fully loaded with 12 cubic meters of water and equipment, it can drive stably on complex road conditions.
The core of the power system is the Cummins ISF3.8s5168 engine, with a maximum power of 125kW. It can output a peak torque of 560N·m at 1300rpm, enabling rapid starting and smooth acceleration. The application of turbocharging and intercooling technologies not only enhances power but also reduces fuel consumption. As an internationally renowned brand, its advanced manufacturing process ensures the durability of the engine, with a long maintenance interval, effectively reducing maintenance costs. At the same time, this engine meets Euro V emission standards. With advanced exhaust gas treatment technology, it has excellent environmental protection performance and can operate freely in urban areas with strict environmental requirements.

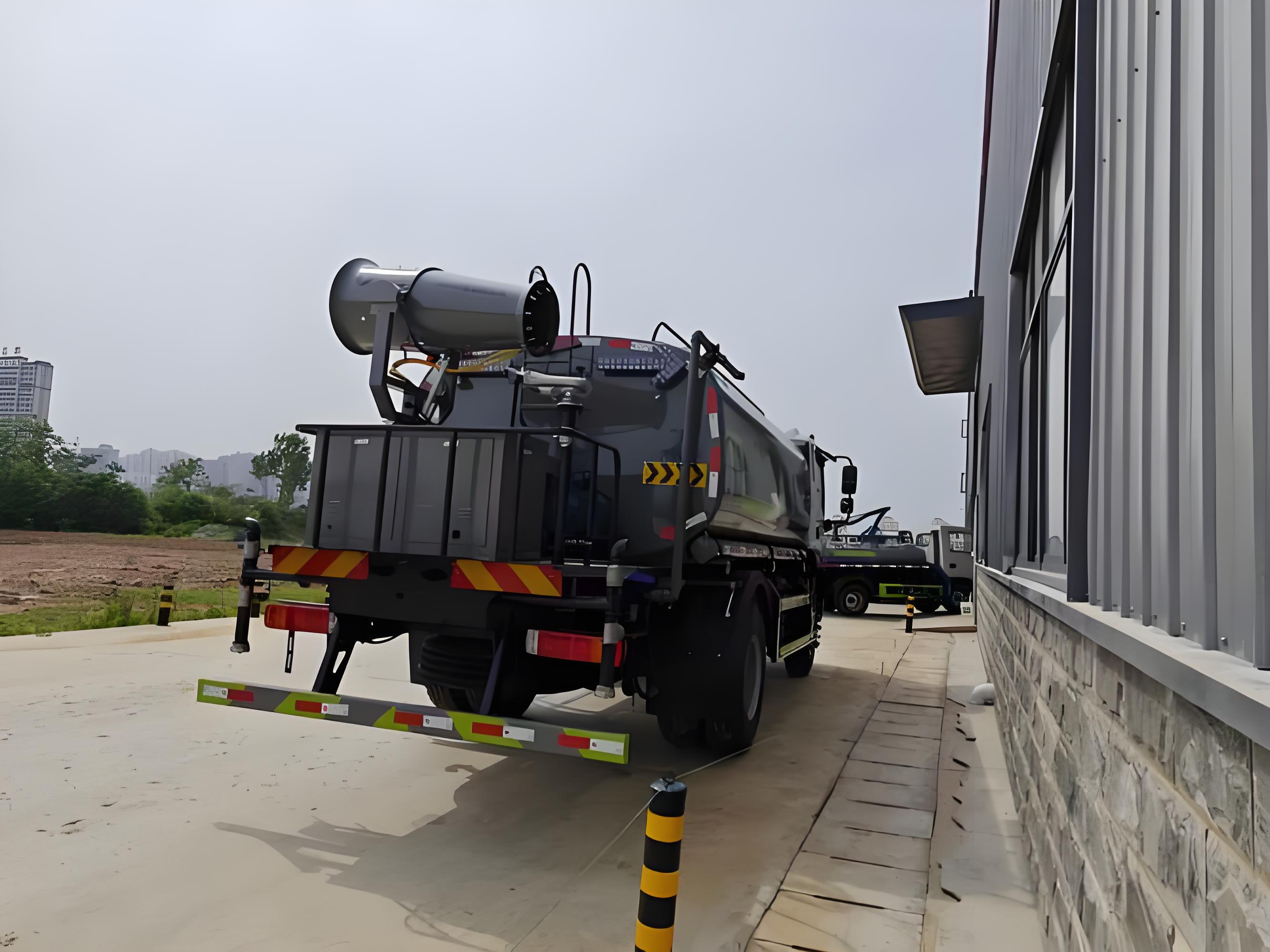

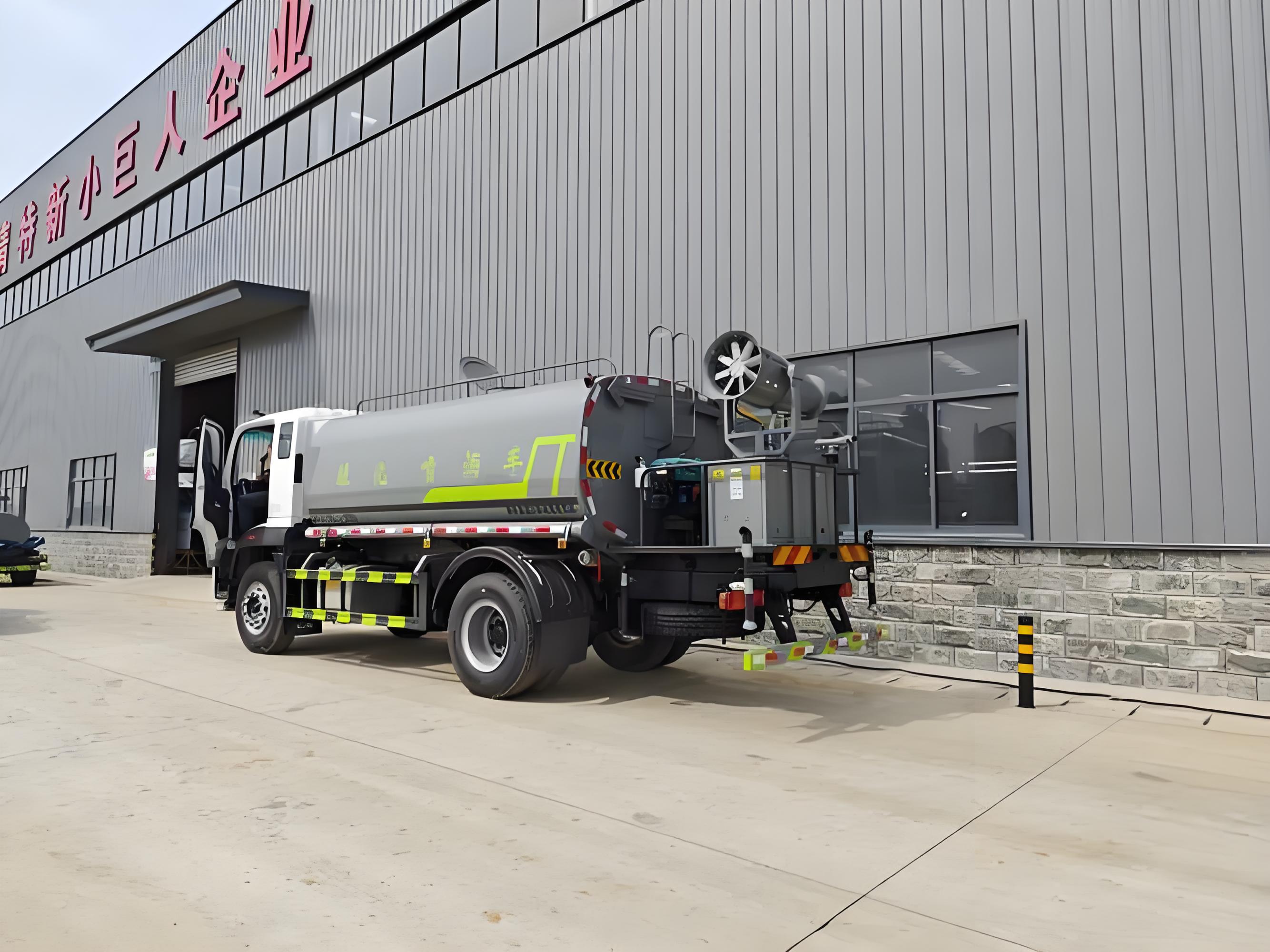

The upper mounting configuration is also remarkable. The 12-cubic-meter large-capacity tank is made of 4mm-thick high-quality carbon steel plates, and the built-in anti-wave plates reduce water shaking. The Yifeng 80QZ - 60/90 sprinkler pump has a self-priming height of up to 6 meters and a water output of 60 cubic meters per hour. With functions such as front flushing, rear spraying, and side spraying, it can quickly clean roads and suppress dust. The fog cannon unit on the rear platform is a powerful dust control tool, with a maximum range of over 30 meters. It can rotate 360 degrees horizontally and adjust from -10 degrees to 45 degrees vertically, achieving full coverage. The remote control design allows the driver to flexibly control the spray volume and angle from the cab, greatly improving operation efficiency and safety.
The Foton 12-cubic-meter fog cannon vehicle, powered by the Cummins 170-horsepower engine, with its outstanding performance, has become a reliable partner for urban dust suppression and road cleaning, continuously contributing to protecting the blue sky of the city.
