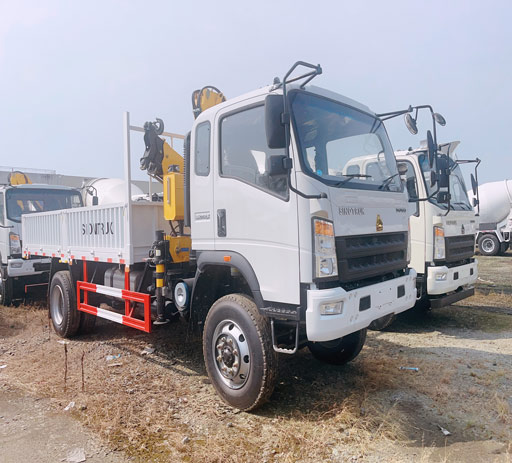

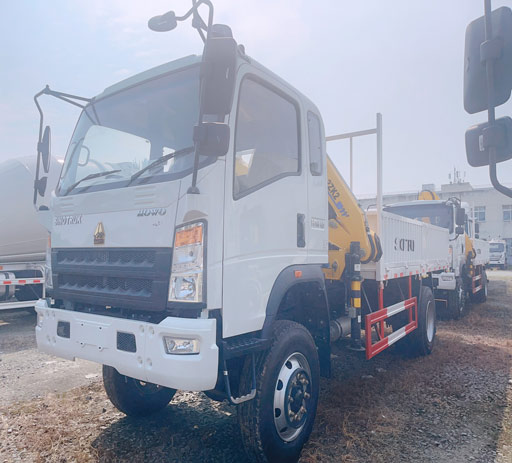

hydraulic xcmg articulated boom/fold boom, 3.2ton lifting capacity,with howo chassis, diesel engine, cargo box,which is widely used in multiple working conditions.
howo chassis,2025 orginal manufacture
diesel engine,euro2/5/6 emission standard
single cab, left hand or right hand steering

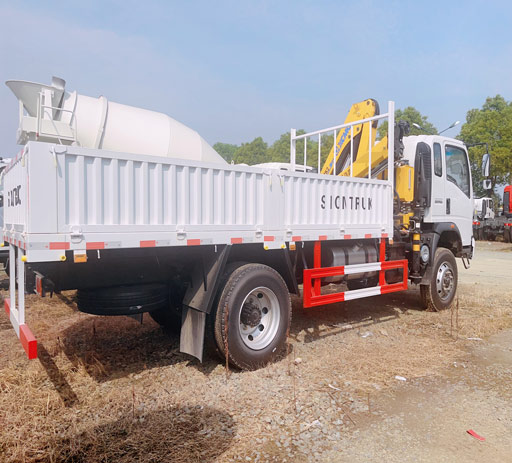

cargo box,carbon steel material, 3mm side,4mm floor thickness, 3/5ton loading capacity,
hydraulic outrigger/stabilizer

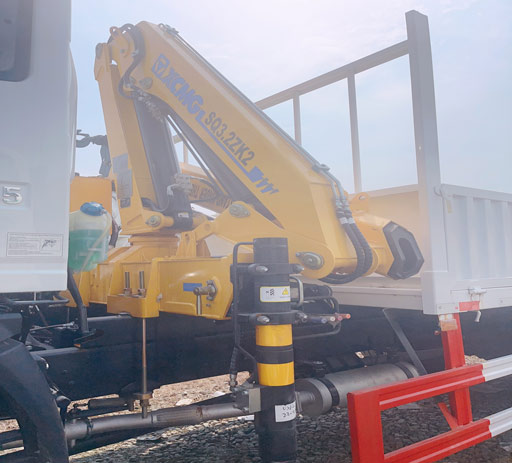

hydraulic xcmg articulated boom/fold boom
3.2ton lifting capacity,3 sections,10m max lifting capacity, 7.6m working radius
| Truck name | truck mounted crane |
| Chassis brand | Howo |
| Emission standard | Euro3/4/5 |
| Steering type | Left/right hand drive |
| Wheel base | 3800mm |
| Engine | ISF3.8S3141 |
| Horsepower | 141hp |
| Tire | 8.25R16 |
| Tire number | 6+1 |
| Front axle capacity | 2.4ton |
| Rear axle capacity | 4.2ton |
| Transmission | Manual |
| Gear box | WLY651 |
| Fuel type | Diesel |
| Air condition | Cold and heat air conditioning |
| Super structure parameters | |
| Crane lifting type | Hydraulic |
| Crane capacity | 3.2ton |
| Boom model | 3-section |
| Lifting height | 10m |
| Working radius | 7.6m |
| container size | 4300*2300*550mm(customized ) |
| container material | High strength carbon steel |
| Container thickness | 3mm Side,4mm bottom |
